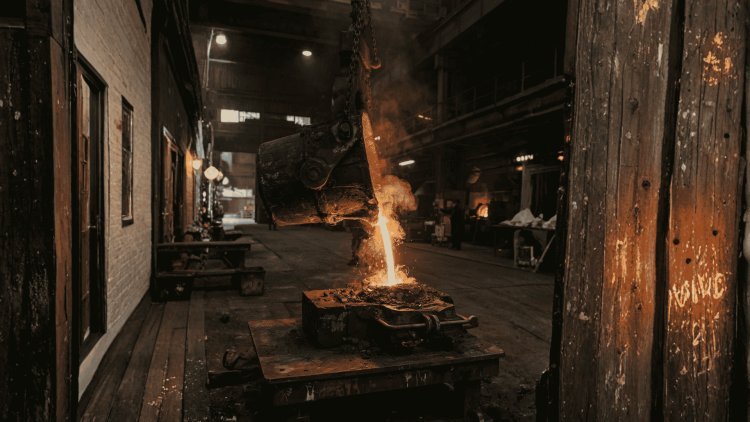

Enhancing Reliability in High- Performance Cast Components
A deep dive into solidification science, precision manufacturing, and AIdriven process control — building the next generation of defect-free castings.
The Core Challenge: Solidification and Stress
Where Quality Is Won or Lost
During cooling and solidification, thermal gradients, geometry, and material behavior interact simultaneously. Small variations in this phase can generate hidden defects that later determine fatigue life, structural reliability, and component certification outcomes.
Stress Concentration
Sharp internal corners create localized stress amplification zones. Under repeated loading, these areas become preferred crack initiation sites, accelerating fatigue-driven failure mechanisms.
Non-Uniform Wall Thickness
Variations in section thickness create uneven cooling behavior across the casting. Thick regions remain hot longer, forming thermal hot spots that generate residual stress, distortion, and feeding challenges during solidification.
Defect Formation Chain
How Engineers Fight Back
Every Defect Begins During Solidification
Shrinkage porosity, geometric stress concentrations, and thermal hot spots all originate from how a casting cools and solidifies. Modern simulation-driven foundries therefore focus on controlling thermal behavior before production begins, transforming solidification from an unpredictable event into a precisely engineered process that delivers reliable, flight-critical performance.
Consistent thickness ensures even cooling rates, eliminating hot spots and residual stress gradients that drive distortion and cracking.
Replacing sharp corners with generous radii redistributes stress and dramatically extends fatigue life by reducing stress concentration.
Strategically placed chills and risers feed shrinking regions and guide the solidification front to eliminate internal voids and shrinkage porosity.
Designing for Soundness
Uniform Wall Sections
Radii Over Sharp Angles
Directional Solidification
Alloys like 319 Aluminum experience complex stress cycles during thermal fluctuations. Characterizing these behaviors is critical for accurate life prediction in high-temperature applications.
Over time, fine strengthening precipitates grow and coarsen, degrading yield strength. Monitoring coarsening kinetics allows engineers to anticipate long-term structural degradation before failure.
Advanced hardening laws embedded in constitutive equations quantify how materials respond under cyclic stress — enabling accurate simulation of component lifespan before a single part is cast.
Predicting Performance
Thermo-Mechanical Fatigue
Precipitate Coarsening
Constitutive Modeling
High-speed metal injection delivers precision, consistency, and productivity impossible with conventional gravity-fed casting methods.
Molten metal is injected into hardened steel dies under high pressure and velocity, forcing material into intricate cavity details before solidification occurs. This process enables outstanding surface finish, dimensional consistency, and near-net-shape production while supporting thousands of repeatable manufacturing cycles.
High-pressure injection rapidly fills the die cavity before freezing can occur. The process creates highly accurate near-net-shape components, reducing machining operations, scrap generation, and total manufacturing cost.
Engineered cooling strategies regulate die temperature while specialized lubricants improve metal flow, reduce soldering, and minimize thermal fatigue. Together they deliver stable cycle times and predictable solidification behavior.
H13 tool steel provides exceptional resistance to thermal shock, erosion, and fatigue. This allows dies to maintain cavity accuracy over thousands of casting cycles while supporting demanding production schedules.
High-Pressure Die Casting succeeds because injection dynamics, cooling strategy, lubrication technology, and H13 die performance operate as a tightly integrated manufacturing system. When properly engineered, HPDC delivers the combination of precision, surface quality, repeatability, and cost efficiency required by modern high-volume industrial production.
What Makes HPDC Different?
HPDC for Tight Tolerances
Spray Cooling & Die Lubrication
Tool Steel Dies (H13)
Three Outcomes of Modern HPDC
Pressure, Thermal Control & Tooling Working as One System
Prescriptive AI delivers actionable process adjustments the moment anomalies are detected, preventing defects rather than just recording them.
Continuous monitoring of casting equipment health in real time supports uptime and process consistency across operations.
Combining predictive asset management with closed-loop system feedback drives production toward zero-defect outcomes.
Prescriptive AI and Reliability
Real-Time Recommendations
Crane & Machine Health
Zero-Defect Goal
