Simulation Approaches for Large Industrial Valves and Pump Castings

In modern foundry and manufacturing, precision is non-negotiable. PoligonCast leverages advanced casting simulation to engineer flawless large industrial valves and pump castings — reducing defects, cutting lead times, and delivering components that perform under extreme conditions.

Casting Simulation Jul 9, 2026 0 36 Add to Reading List

Simulation Approaches for Large Industrial Valves and Pump Castings

Simulation-Driven Engineering

Why Simulation Matters

Industrial Casting Validation

Eliminate Guesswork Before Metal Is Poured

Large valves and pump castings are among the most demanding components in industrial manufacturing. Their complex geometries, thick wall sections, and critical service environments leave little tolerance for defects. Casting simulation replaces costly trial-and-error methods with data-driven insight, predicting solidification behavior, thermal gradients, and potential failure points before production begins.

✓

Defect Prevention

Identify shrinkage, porosity, and cold shuts before production begins, reducing quality risks and unexpected failures.

Cost Reduction

Eliminate expensive physical trials, tooling modifications, and rework cycles through virtual validation.

→

Faster Delivery

Compress development timelines and accelerate production readiness using simulation-based qualification.

Core Techniques

Core Simulation Techniques

Solidification Simulation

Models heat transfer and cooling rates to predict shrinkage cavities and hot spots in thick-walled valve bodies.

Mold Filling Analysis

Simulates molten metal flow to detect turbulence, air entrapment, and misruns before tooling is committed.

Stress & Distortion Modeling

Predicts residual stresses and dimensional distortions, ensuring pump castings meet tight geometric tolerances.

Digital Foundry Workflow

The PoligonCast Simulation Workflow

Geometry & Materials

CAD import and material selection

Process Parameters

Define temperatures, timings, and feeding conditions

Simulation & Analysis

Run virtual trials and evaluate results

Production Release

Optimize and sign off for manufacturing

End-to-End Validation

Every Casting Validated Before Production

PoligonCast's structured simulation workflow integrates seamlessly with foundry operations—from initial CAD geometry through material selection, process optimization, and final production sign-off. The result is a digitally validated casting process that minimizes risk, reduces costly iterations, and ensures manufacturing readiness before the first mold is poured.

Complex Geometries

Tackling Complex Geometries

Valves

Gate, globe, and butterfly valves feature intricate internal passages and varying wall thicknesses. Simulation maps thermal gradients across these geometries, optimizing riser placement and gating design to eliminate internal porosity.

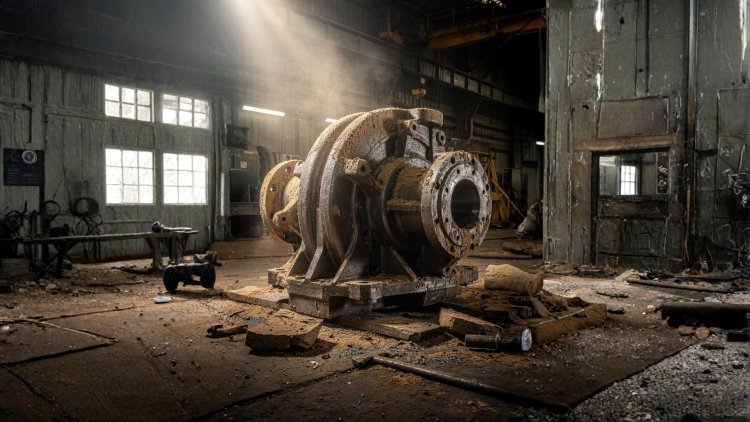

Pump Castings

Volute casings and impeller housings demand smooth internal surfaces and dimensional accuracy. Simulation predicts flow-related defects and warpage, enabling foundry engineers to adjust process parameters proactively.

Proven Results

Measurable Impact

40%

Quality Improvement

Scrap Reduction

Typical reduction in casting scrap rates through simulation-guided process design and optimization.

60%

Development Speed

Faster Trials

Significant reduction in physical trial iterations, compressing time-to-production and approval cycles.

3×

Financial Return

ROI

Return on simulation investment through reduced rework, material savings, and on-time delivery.

IMPACT

Critical Infrastructure Applications

Better Castings Mean Greater Reliability

For large industrial valves and pump castings—where a single defective component can interrupt critical infrastructure operations—these measurable gains translate directly into higher reliability, lower manufacturing risk, stronger customer confidence, and a significant competitive advantage.

PoligonCast Partnership

Partner with PoligonCast

PoligonCast combines deep foundry engineering expertise with state-of-the-art simulation technology to deliver large industrial valve and pump castings of the highest integrity.
