Simulating the Influence of Electromagnetic Stirring on Grain Refinement in Steel Castings

In modern foundry and manufacturing, controlling microstructure during solidification is critical to producing high-performance steel castings. Electromagnetic stirring (EMS) has emerged as a powerful technique 4 and simulation is now the key to mastering it.

Casting Simulation Jun 1, 2026 0 43 Add to Reading List

Simulating the Influence of Electromagnetic Stirring on Grain Refinement in Steel Castings

Grain Refinement Technology

What Is Electromagnetic Stirring?

Electromagnetic stirring (EMS) uses externally applied magnetic fields to induce controlled fluid motion in molten steel during solidification. This agitation breaks up dendritic structures, promotes equiaxed grain formation, and reduces segregation—resulting in a more uniform and refined microstructure.

Magnetic Field Control

External electromagnetic fields generate controlled fluid flow within molten steel without physical contact or mechanical agitation.

Molten Metal Agitation

Controlled stirring disrupts dendritic growth, improves melt homogeneity, and enhances heat and solute distribution.

Grain Refinement

Promotes equiaxed grain formation and reduces segregation, producing a more uniform microstructure and improved material properties.

EMS is widely used in continuous casting, ingot casting, and near-net-shape manufacturing processes to improve steel quality, consistency, and overall production performance.

Metallurgical Benefits

Why Grain Refinement Matters

Grain structure directly influences the performance, reliability, and manufacturability of steel castings. Refining grain size creates a stronger, more uniform microstructure that delivers measurable benefits throughout the component lifecycle.

Mechanical Strength

Finer grains improve tensile strength, toughness, and fatigue resistance, helping castings perform reliably under demanding service conditions.

Reduced Defects

Equiaxed grain structures minimize porosity, hot tearing, and centerline segregation, leading to higher-quality castings.

Consistent Quality

Uniform microstructure ensures predictable performance, dimensional stability, and repeatable quality across every cast component.

Simulation Science

The Physics Behind EMS Simulation

Advanced EMS simulation couples electromagnetic, thermal, and fluid dynamics solvers to accurately predict grain refinement outcomes before a single casting is poured.

EM Field Modeling

Lorentz Force Calc

Fluid & Thermal CFD

Solidification & Grain

Key Physics Domains

Maxwell's Equations

Govern the electromagnetic field distribution within and around the mold, determining magnetic force generation.

Navier-Stokes Equations

Describe melt flow behavior driven by Lorentz forces induced by the electromagnetic field.

Solidification Models

Predict nucleation, dendrite fragmentation, and equiaxed grain growth throughout the solidification process.

Advanced Simulation Strategy

PoligonCast's Simulation Approach

PoligonCast combines advanced multi-physics simulation with foundry engineering expertise to optimize electromagnetic stirring performance, predict grain refinement outcomes, and minimize costly production trials.

Coupled Multi-Physics Modeling

Simultaneous electromagnetic, thermal, and flow simulation provides full-process accuracy and realistic solidification predictions.

EMS Parameter Optimization

Frequency, current intensity, and coil geometry are virtually tuned to maximize grain refinement before physical trials begin.

Microstructure Prediction

Grain size distribution, equiaxed zone extent, and final microstructural characteristics are predicted with high fidelity.

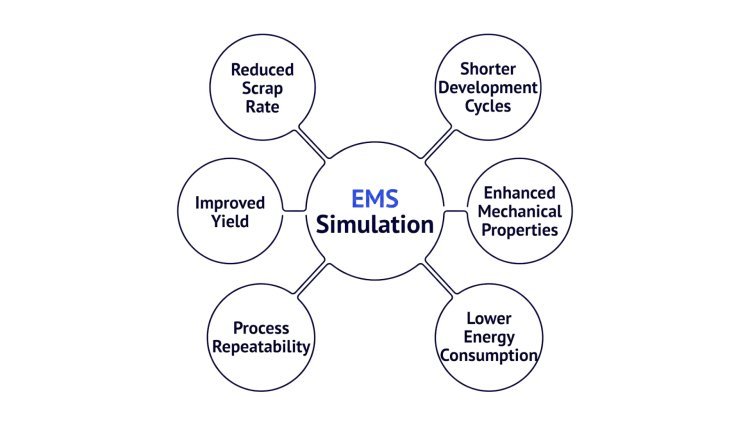

Industry Impact

Industrial Benefits & Applications

By virtually validating EMS configurations, foundries eliminate costly trial-and-error on the shop floor. PoligonCast's simulation-driven methodology helps manufacturers optimize grain refinement, reduce development risk, and accelerate production readiness.

Continuous Casting

Optimizing EMS performance for billets, blooms, and slab production to improve grain structure and reduce segregation.

Large Steel Ingots

Enhancing internal quality and reducing centerline segregation in heavy-section ingot manufacturing.

Aerospace & Structural Castings

Producing high-integrity castings where grain uniformity and defect minimization are critical performance requirements.

Specialty Alloys

Supporting tool steels and advanced alloy systems that demand precise microstructure control and consistency.

60%

Fewer Physical Trials

Simulation-driven EMS optimization can reduce physical trials by up to 60%, accelerating time-to-production while lowering development costs and process risk.

Looking Ahead

The Future of Smart Casting with PoligonCast

As steel casting demands grow more exacting, electromagnetic stirring simulation stands at the intersection of physics, materials science, and digital manufacturing. PoligonCast delivers the expertise to harness this technology — transforming complex multi-physics challenges into optimized, production-ready casting processes.

Advanced Physics

Coupled electromagnetic, thermal, fluid flow, and solidification modeling delivers highly accurate casting process predictions.

Digital Validation

Virtual process optimization enables engineers to validate EMS strategies before any physical casting begins.

Industry-Ready

Proven across continuous casting operations, specialty alloys, and demanding industrial manufacturing environments.

Engineering the Next Generation of Casting Excellence

By combining advanced simulation technologies with deep foundry expertise, PoligonCast empowers manufacturers to achieve higher quality, lower risk, and faster innovation in an increasingly competitive casting landscape.
