Digital Pattern & Mold Making: 3D Printing, Simulation, and Hybrid Processes

The Old Way

Conventional pattern making relied on skilled craftsmen, wood, and metal — a time-intensive process prone to human error and limited geometric complexity.

The Digital Shift

Today, CAD models drive CNC machining and 3D printing directly, compressing lead times from weeks to days while enabling geometries previously impossible to produce manually.

Sand Mold Printing

Binder jetting technology prints sand molds directly from CAD models with no pattern required, enabling rapid prototyping of highly complex cores and cavities.

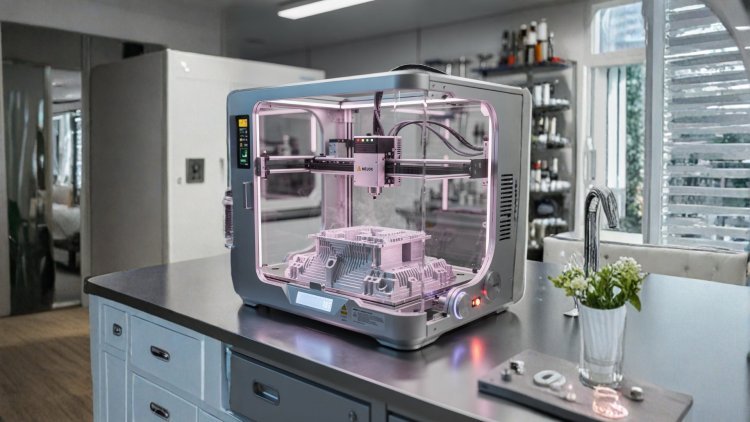

Polymer Patterns

SLA and FDM printed patterns replace traditional wooden tooling for short-run production, dramatically reducing tooling costs and design iteration time.

Direct Metal Printing

DMLS and SLM technologies produce near-net-shape metal mold inserts with conformal cooling channels for superior thermal management and process efficiency.

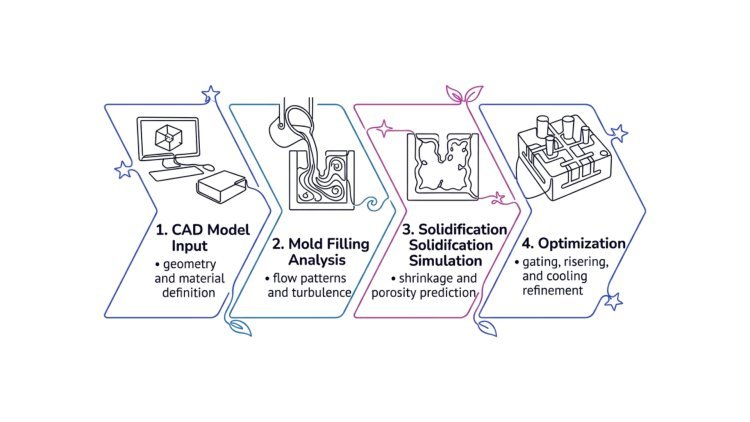

Simulation-driven design significantly reduces development cycles while improving casting quality, yield, and overall manufacturing efficiency.

3D Printed Cores + Traditional Molds

Complex internal geometries are printed while outer mold sections utilize conventional tooling, creating an ideal balance between manufacturing cost and design complexity.

CNC + Additive Hybrid Tooling

Rough forms are machined conventionally, while intricate features are added through additive manufacturing to maximize precision, efficiency, and throughput.

Simulation-Guided Iteration

Every hybrid production cycle is validated digitally before manufacturing begins, ensuring continuous improvement, higher quality, and minimal material scrap.

Lead Time Reduction

Digital tooling compared to conventional pattern making significantly accelerates production readiness.

Defect Reduction

Simulation-driven mold design helps eliminate defects before production begins.

Geometric Freedom

Complex internal channels, lattice structures, and undercuts are now achievable.

First-Time-Right

Castings are digitally validated before any metal is poured, reducing risk and rework.

Advanced Simulation

Predict and eliminate defects before production begins, improving quality, yield, and manufacturing efficiency.

Digital Tooling

Rapid, highly accurate patterns and molds produced through advanced 3D printing technologies.

Hybrid Expertise

Tailored solutions that combine digital innovation with proven traditional manufacturing methods.
