Feeding Behavior in Thick-to- Thin Section Transitions

A deep dive into one of casting's most critical challenges — and how simulation-driven engineering solves it.

Casting Simulation Jul 9, 2026 0 55 Add to Reading List

Feeding Behavior in Thick-to- Thin Section Transitions

Casting Design Challenges

Why This Transition Matters

T/T

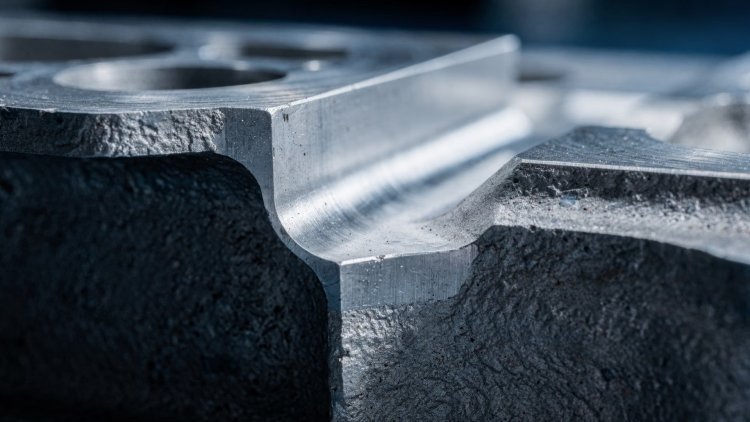

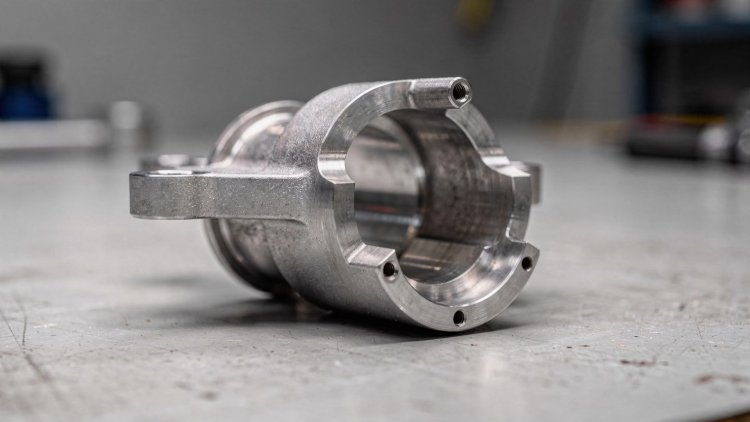

Thick-to-Thin Transitions

Where Many Casting Defects Begin

In modern foundry practice, abrupt thickness transitions create significant differences in cooling and solidification behavior. These regions often become critical defect zones where feeding becomes difficult and casting quality can be compromised.

Thermal Effects

Diverging Solidification Rates

Thick sections retain heat while thinner sections cool rapidly, creating uneven solidification and challenging feeding conditions.

Defect Formation

Shrinkage & Misruns

Abrupt transitions frequently become locations for shrinkage porosity, incomplete fill, and other structural defects.

Design Importance

Controlled Metal Feeding

Understanding liquid-metal feeding through transitions is essential for producing sound castings in aerospace, automotive, and industrial applications.

Core Problem

Competing Solidification Rates

Thin Sections Freeze First

Thin walls solidify rapidly, cutting off the feed path before the thicker region has fully solidified.

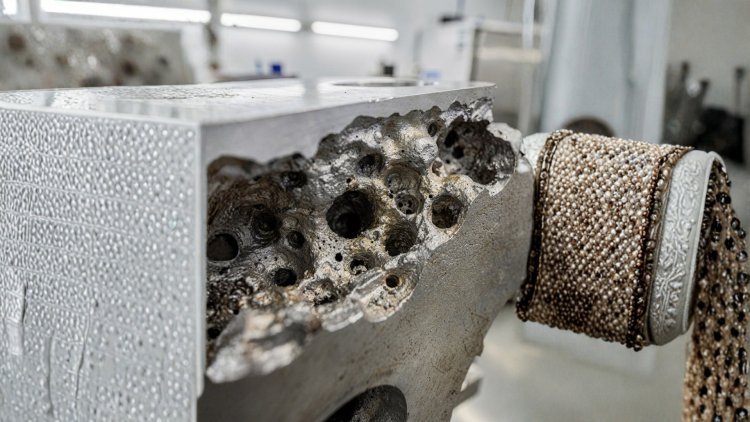

Shrinkage Porosity

Isolated liquid pools in thick sections contract without a feed source, forming internal voids.

Thermal Gradients

Steep temperature gradients across the transition zone amplify feeding difficulty and defect risk.

Feeding Control Fundamentals

Key Feeding Mechanisms

FEED

Sound Casting Formation

Controlling Metal Flow During Solidification

Successful feeding depends on multiple mechanisms acting together throughout solidification. Understanding these mechanisms enables engineers to prevent shrinkage defects and maintain casting integrity across challenging section transitions.

Early Solidification

Liquid Feeding

Bulk liquid metal flows from the riser into the casting during early solidification, compensating for volume contraction before thin sections freeze.

Mushy Zone Feeding

Interdendritic Feeding

As dendrites form, liquid metal feeds through narrow channels between branches, making feeding highly sensitive to geometry and alloy behavior.

Feeding Pressure

Metallostatic Pressure

Riser height and placement generate the pressure required to drive liquid metal through critical transition zones during solidification.

Solidification Control

Thermal Management

Chills, insulating sleeves, and engineered mold materials steer heat flow and promote favorable directional solidification.

Simulation Solutions

Simulation-Driven Solutions

Validated Casting Design

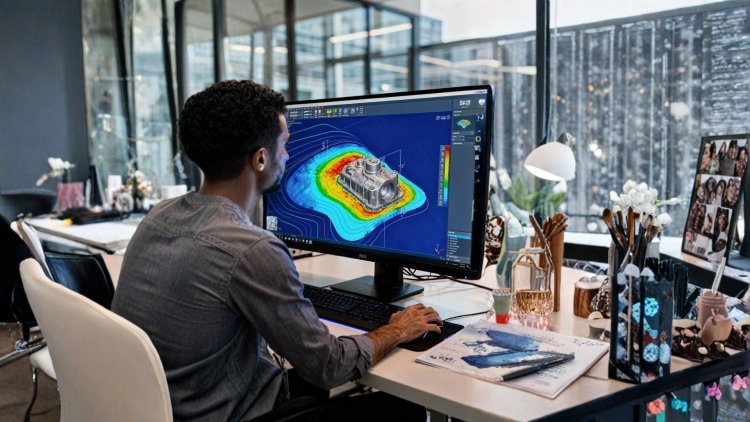

PoligonCast's simulation workflow identifies feeding deficiencies before the first pour, dramatically reducing trial-and-error in the foundry.

Shrinkage Prediction

Pinpoint porosity risk zones at transition interfaces with high accuracy.

Riser Sizing & Placement

Optimize feed metal volume and position relative to the thick section.

Chill Design

Strategically accelerate thin-section cooling to preserve the feed path.

Engineering Guidelines

Best Practices for Foundry Engineers

Solidification Strategy

Design for Directional Solidification

Orient the casting so solidification progresses from thin sections toward thicker regions and ultimately to the riser, ensuring effective feeding throughout the process.

Geometry Design

Avoid Abrupt Transitions

Introduce smooth tapers and blended section changes wherever possible. Gradual transitions improve feeding behavior, reduce thermal-stress concentrations, and minimize shrinkage-related defects.

Predictive Engineering

Validate with Simulation Early

Perform solidification and feeding analysis during the design phase rather than after tooling investment, reducing risk and avoiding expensive redesigns.

Digital Optimization

Iterate Digitally

Evaluate multiple riser, chill, and gating configurations through virtual trials, converging on the optimal design before physical production begins.

Simulation Confidence

Engineering Confidence Through Simulation

Thick-to-thin section transitions will always present feeding challenges — but with the right simulation tools and engineering methodology, they are entirely manageable.

PoligonCast combines advanced casting simulation, foundry expertise, and digital manufacturing insight to help clients eliminate defects, reduce scrap, and bring sound castings to production faster.
