Digital Verification of Casting Manufacturability

In today's competitive manufacturing landscape, ensuring a casting design is manufacturable before production begins is no longer optional — it's essential. Digital verification transforms how foundries validate designs, reducing costly errors and accelerating time-to-market.

Foundry Simulation Jul 9, 2026 0 45 Add to Reading List

Digital Verification of Casting Manufacturability

Design for Manufacturing

What Is Casting Manufacturability?

Manufacturing Readiness

Designing Parts That Can Be Cast Reliably

Casting manufacturability refers to the degree to which a part design can be produced efficiently, economically, and consistently through casting processes. It evaluates whether geometry, material selection, and process requirements support defect-free production.

Key considerations include wall thickness, draft angles, parting-line placement, and molten-metal flow characteristics. Optimizing these features early helps reduce production risk and improve casting quality.

Wall Thickness

Maintain consistent sections to improve feeding and cooling behavior.

Draft Angles

Enable clean mold release while protecting dimensional accuracy.

Material Flow

Promote smooth filling and proper feeding throughout the casting.

Poor Manufacturability Drives Defects and Costs

Designs that ignore manufacturability constraints often lead to shrinkage, porosity, mold-filling problems, dimensional variation, and costly rework cycles. Early simulation and design validation help eliminate these risks before production begins.

Digital Simulation

The Role of Digital Simulation

Advanced casting simulation software enables engineers to virtually test every aspect of the casting process — from mold filling to solidification — before a single pattern is cut.

Mold Filling Analysis

Predicts turbulence, cold shuts, and misruns in the filling phase.

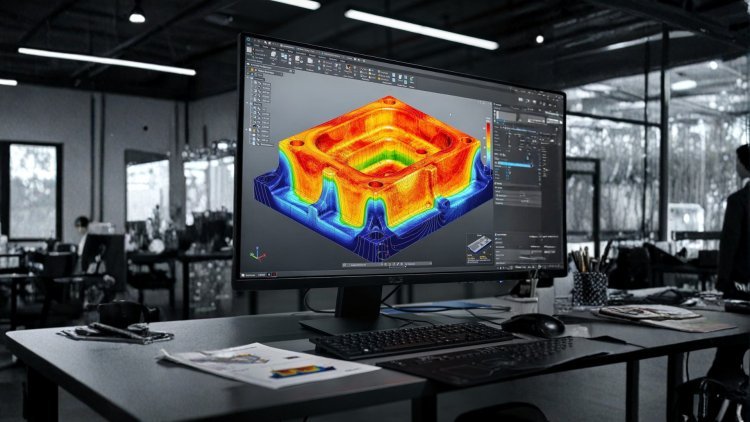

Solidification Modeling

Identifies hot spots, shrinkage, and porosity before production.

Thermal Stress Prediction

Detects residual stress and distortion risks in the final part.

Digital Validation Advantages

Key Benefits of Digital Verification

Faster Time-to-Market

Eliminate physical trial-and-error iterations and reduce development bottlenecks, significantly compressing product launch timelines.

Higher First-Pass Yield

Identify design flaws and process risks digitally, ensuring castings meet specifications from the very first production pour.

Reduced Scrap & Rework

Minimize material waste, avoid unnecessary rework, and lower labor costs by resolving defects before production starts.

Cross-Team Alignment

Shared simulation data creates a common source of truth across design, engineering, manufacturing, and foundry teams.

Business Impact

Better Decisions, Faster Development, Stronger Results

Digital verification transforms casting development from a reactive process into a predictive one, enabling organizations to launch products faster, reduce manufacturing risk, improve quality, and align teams around validated engineering data.

Verification Workflow

The Digital Verification Workflow

Design Sign-Off

Initial design approval before simulation begins.

Virtual Testing

Simulation of mold filling, solidification, and stress analysis.

Design Review

Engineers evaluate simulation results and refine the design.

Simulation Setup

Finalized parameters prepared for production validation.

This structured workflow ensures every casting design is rigorously validated digitally before committing to tooling — saving time, cost, and material at every stage of production.

Why PoligonCast

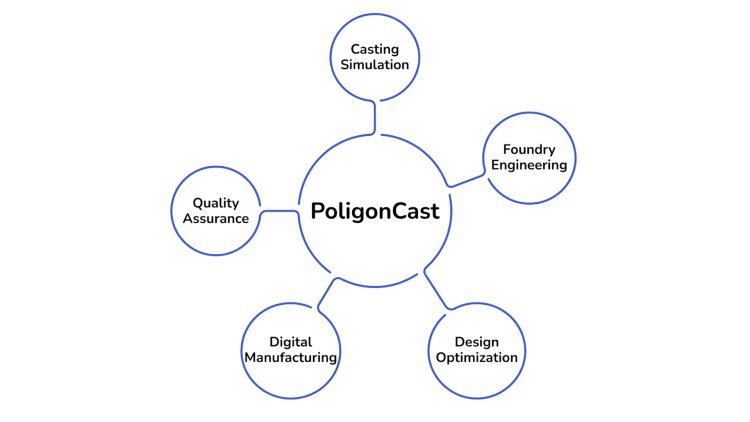

PoligonCast's Digital Approach

Digital Verification Platform

Validation Built Into Every Casting Project

At PoligonCast, digital verification is embedded into every project from day one. Our engineers leverage state-of-the-art simulation platforms to validate casting manufacturability with precision, confidence, and complete production visibility before any tooling investment is made.

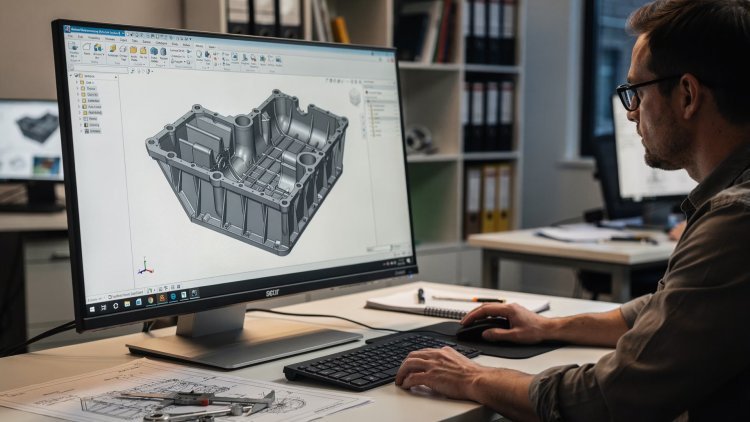

Integrated CAD-to-Simulation Pipelines

Seamlessly transfer CAD geometry into advanced simulation environments for faster and more reliable design validation.

Multi-Alloy & Multi-Process Expertise

Extensive experience across diverse alloys and casting methods ensures accurate simulations tailored to each application.

Iterative Optimization

Evaluate multiple design alternatives digitally and refine process parameters before committing to tooling and production.

Full Quality Traceability

Complete digital documentation supports quality audits, process validation, compliance requirements, and production traceability.

Digital Future

The Future Is Digitally Verified

Digital verification of casting manufacturability is no longer a competitive advantage — it is the new industry standard. Foundries that embrace simulation-driven design will lead in quality, efficiency, and innovation.
